GN 615 NI Ball spring plungers stainless steel
SKU : GN 615 NI
THREADED BODY : AISI 303 stainless steel, screwdriver slotted head. STANDARD EXECUTIONS
GN 615-KN: hardened stainless steel ball, stainless steel spring with
normal end-force. GN 615-KSN: hardened stainless steel ball, stainless steel spring
with heavy end-force, threaded body with two laser-engraved lines.
หมวดหมู่ :
บอลสปริง
รายละเอียดสินค้า

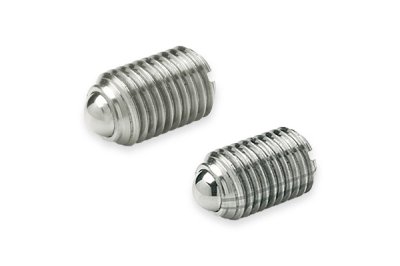

GN 615 NI Ball spring plungers
Stainless Steel
THREADED BODY
AISI 303 stainless steel, screwdriver slotted head.
STANDARD EXECUTIONS
- GN 615-KN : hardened stainless steel ball, stainless steel spring with
normal end-force. - GN 615-KSN : hardened stainless steel ball, stainless steel spring
with heavy end-force, threaded body with two laser-engraved lines.
SPECIAL EXECUTIONS ON REQUEST
- GN 615-KN-MVK, GN 615-KSN-MVK: thread locking by means of
micro-encapsulated red patch (see Technical data on page A-20).
Working temperature: from -40°C to +170°C. - GN 615-KN-PFB, GN 615-KSN-PFB: thread locking by means of
polyamide blue coating (see Technical data on page A-20). Working
temperature: from -50°C to +90°C.
| KN | ||||||||
| Code | Description | d1 | d2 | l+0.1 | W | Spring preload [N] | Spring max load [N] | Weight (g) |
| GN.33090 | GN 615-M2-KN | M 2 | 1 | 4 | 0.3 | 0.8 | 1.5 | 1 |
| GN.33093 | GN 615-M3-KN | M 3 | 1.5 | 7 | 0.4 | 3 | 4.5 | 1 |
| GN.33103 | GN 615-M4-KN | M 4 | 2.5 | 9 | 0.8 | 6 | 14.5 | 1 |
| GN.33113 | GN 615-M5-KN | M 5 | 3 | 12 | 0.9 | 8 | 14 | 1 |
| GN.33123 | GN 615-M6-KN | M 6 | 3.5 | 14 | 1 | 11 | 18 | 2 |
| GN.33133 | GN 615-M8-KN | M 8 | 4.5 | 16 | 1.5 | 18 | 31 | 4 |
| GN.33143 | GN 615-M10-KN | M 10 | 6 | 19 | 2 | 24 | 45 | 7 |
| GN.33153 | GN 615-M12-KN | M 12 | 8 | 22 | 2.5 | 26 | 49 | 11 |
| GN.33163 | GN 615-M16-KN | M16 | 10 | 24 | 3.5 | 41 | 86 | 23 |
| GN.33173 | GN 615-M20-KN | M 20 | 12 | 30 | 4.5 | 56 | 111 | 43 |
| GN.33183 | GN 615-M24-KN | M 24 | 15 | 34 | 5.5 | 81 | 151 | 74 |
| KSN | ||||||||
| Code | Description | d1 | d2 | l+0.1 | W | Spring preload [N] | Spring max load [N] | Weight (g) |
| GN.33104 | GN 615-M4-KSN | M 4 | 2.5 | 9 | 0.8 | 12 | 18 | 1 |
| GN.33114 | GN 615-M5-KSN | M 5 | 3 | 12 | 0.9 | 15 | 22 | 2 |
| GN.33124 | GN 615-M6-KSN | M 6 | 3.5 | 14 | 1 | 19 | 28 | 2 |
| GN.33134 | GN 615-M8-KSN | M 8 | 4.5 | 16 | 1.5 | 36 | 62 | 4 |
| GN.33144 | GN 615-M10-KSN | M 10 | 6 | 19 | 2 | 57 | 104 | 8 |
| GN.33154 | GN 615-M12-KSN | M 12 | 8 | 22 | 2.5 | 61 | 110 | 12 |
| GN.33164 | GN 615-M16-KSN | M 16 | 10 | 24 | 3.5 | 68 | 142 | 24 |
| GN.33174 | GN 615-M20-KSN | M 20 | 12 | 30 | 4.5 | 84 | 166 | 47 |
| GN.33184 | GN 615-M24-KSN | M 24 | 15 | 34 | 5.5 | 127 | 237 | 70 |
