GN 615.2 Ball spring plungers Technopolymer
SKU : GN 615.2
THREADED BODY : Acetal resin based (POM) technopolymer, screwdriver slotted head.
หมวดหมู่ :
บอลสปริง
รายละเอียดสินค้า

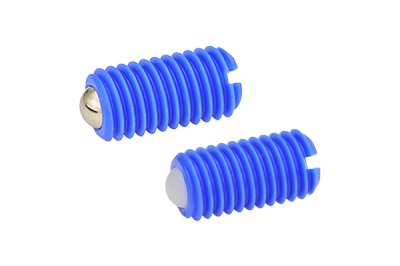

GN 615.2 Ball spring plungers
Technopolymer
THREADED BODY
Acetal resin based (POM) technopolymer, screwdriver slotted head.
STANDARD EXECUTIONS
- GN 615.2-P : technopolymer ball, stainless steel spring.
- GN 615.2-NI : hardened stainless steel ball, stainless steel spring.
WORKING TEMPERATURE
From -30°C to +50°C.
| GN 615.2-P | ||||||||
| Code | Description | d1 | d2 | l | W | Spring preload [N] | Spring max load [N] | Weight (g) |
| GN.33321 | GN 615.2-M6-P | M6 | 3.5 | 14 | 0.9 | 12 | 17 | 1 |
| GN.33322 | GN 615.2-M8-P | M8 | 5 | 16 | 1.5 | 20 | 35 | 1 |
| GN.33323 | GN 615.2-M10-P | M10 | 6 | 19 | 1.9 | 25 | 45 | 2 |
| GN 615.2-NI | ||||||||
| Code | Description | d1 | d2 | l | W | Spring preload [N] | Spring max load [N] | Weight (g) |
| GN.33301 | GN 615.2-M6-NI | M6 | 3.5 | 14 | 0.9 | 12 | 17 | 1 |
| GN.33302 | GN 615.2-M8-NI | M8 | 5 | 16 | 1.5 | 20 | 35 | 2 |
| GN.33303 | GN 615.2-M10-NI | M10 | 6 | 19 | 1.9 | 25 | 45 | 3 |
